Bechtler Museum of Modern Art: Mario Botta’s Brilliant 2009 Landmark in Charlotte

The Bechtler Museum of Modern Art is one of the most architecturally distinctive museum buildings in the southeastern United States — a four-story terra cotta-clad cube completed in 2009 and opened to the public on 2 January 2010 in Uptown Charlotte, North Carolina. Designed by Swiss architect Mario Botta, the Bechtler Museum of Modern Art is only the second building Botta has designed in the United States, the first being the San Francisco Museum of Modern Art (1995), and it carries all the formal intelligence, material precision, and spatial drama that have made his work internationally celebrated over four decades.

The Bechtler Museum of Modern Art houses a collection of more than 1,400 works of mid-twentieth-century modern art assembled by the Swiss-born Bechtler family and donated to the public trust by Andreas Bechtler, a Charlotte resident and heir to one of Switzerland’s most significant private collections of postwar art. For architecture students, modern art enthusiasts, Charlotte visitors, and researchers studying Mario Botta’s career or the evolution of museum architecture in the American South, the Bechtler Museum of Modern Art is essential study — a building that demonstrates how geometric discipline, material authenticity, and structural courage can produce a civic landmark from a relatively modest urban site.

Quick Facts: Bechtler Museum of Modern Art

Detail	Information
Building name	Bechtler Museum of Modern Art
Architect	Mario Botta Architetto
Project architect (on site)	Tobia Botta
Partner architect	Wagner Murray Architects PA
Structural engineer	KingGuinn Associates
Terra cotta manufacturer	Boston Valley Terra Cotta
Client	Andreas Bechtler / City of Charlotte
Location	420 South Tryon Street, Charlotte, North Carolina, USA
Cultural complex	Levine Center for the Arts, Uptown Charlotte
Building area	35,600 sqm (approximately 36,500 sq ft)
Site area	1,912 sqm
Fourth-floor gallery	10,762 sq ft (approximately half cantilevered)
Key column	47-foot-tall terra cotta-clad swelling column, 8-foot center diameter
Column footing	14 ft 6 in square, located below basement level
Column concrete rating	12,000 psi (2–2.5 times standard column strength)
Column grid	29 ft × 29 ft; 20 grid points; 6 left void at entrance
Terra cotta scope	~30,000 sq ft panels + 6,000 sq ft pavers + 5,000 sq ft soffit units
Sol LeWitt mural	Wall Drawing 995 (2001): 23 ft 5 in tall × 27 ft 5 in wide
Niki de Saint Phalle sculpture	Firebird (Le Grand Oiseau de Feu sur l’Arche, 1991): 17 ft 5 in, 1,433 lbs
Year completed	2009
Year opened	2 January 2010
Photography	Joel Lassiter; Enrico Cano
Collection size	More than 1,400 artworks
Admission	Adult $12; Senior (65+) $10; Student $8; Under 12 free

What Is the Bechtler Museum of Modern Art?

The Bechtler Museum of Modern Art is a privately funded public institution dedicated to the exhibition of mid-twentieth-century modern art, located in the Levine Center for the Arts in Uptown Charlotte. It is the only museum in the southeastern United States dedicated exclusively to mid-century modern art, and it is one of the most significant institutional additions to Charlotte’s cultural landscape since the city began its ambitious program of investment in arts infrastructure in the first decade of the twenty-first century.

The Bechtler Museum of Modern Art is named after the Bechtler family of Switzerland. The collection at its heart was assembled over nearly seventy years, beginning with Hans and Bessie Bechtler, who began visiting the Kunsthaus Zürich in 1950 and developed close personal relationships with many of the artists they collected. The couple preferred art that revealed the working methods of the artist, and acquired drawings and preparatory works related to each artist’s broader practice. Their son Andreas, who grew up surrounded by artists and became one himself, inherited a substantial portion of this collection and added his own acquisitions before donating the entire holding to the public trust in Charlotte — the city where he had lived since 1979.

When the Bechtler Museum of Modern Art opened in January 2010, it brought to public view for the first time in an institutional setting a collection that had been privately held in Switzerland for decades. Works by Alberto Giacometti, Joan Miró, Max Ernst, Andy Warhol, Jean Tinguely, Niki de Saint Phalle, Pablo Picasso, Le Corbusier, Fernand Léger, Edgar Degas, Henri Matisse, Mark Tobey, Ben Nicholson, and Barbara Hepworth — representing the full range of mid-century modernism from the School of Paris through American abstract expressionism and postwar sculpture — became available to Charlotte’s citizens and to visitors from across the southeastern United States.

Mario Botta: The Architect and His American Legacy

To understand the Bechtler Museum of Modern Art fully, it is essential to understand the architect behind it. Mario Botta was born in Mendrisio, Switzerland on 1 April 1943. He left school at 15 and became a draftsman in the architectural studio of Carloni and Camnish in Lugano, completing his first major commission — the redesign of a complex replacing a parish house in Genestrerio — before formal architectural education.

He subsequently studied in Milan and at the Instituto di Architettura in Venice, where he encountered and worked alongside both Le Corbusier and Carlo Scarpa. Scarpa in particular is credited with having given Botta his foundational philosophical orientation toward architecture: an appreciation for minimalism, a deep respect for natural and traditional materials, and a conviction that architecture should engage powerfully with both topography and context.

Botta’s subsequent career produced a body of work distinguished by its formal geometric strength, its consistent use of brick, stone, and terra cotta, and its capacity to create buildings of civic monumentality at varying scales. His buildings are instantly recognizable — cubic or cylindrical massing, surfaces of striped or solid masonry, carefully controlled shafts of natural light — and reflect a consistent philosophy rooted in what Botta has called the enduring power of geometry as a universal architectural language.

The Bechtler Museum of Modern Art is only the second of two commissions Botta has accepted in the United States. The first, the San Francisco Museum of Modern Art (1995), established him as a significant presence in American cultural architecture. The Bechtler Museum of Modern Art extends that presence to the American South, bringing Botta’s European minimalist sensibility into dialogue with a rapidly developing American city whose architectural ambitions were beginning to match its economic growth.

The Urban Context: Charlotte, Uptown, and the Levine Center for the Arts

The Bechtler Museum of Modern Art sits within the Levine Center for the Arts — a cultural complex in Uptown Charlotte that also includes the Harvey B. Gantt Center for African-American Arts and Culture, the Knight Theater, and the Mint Museum Uptown. The complex was developed as part of Charlotte’s sustained effort to establish a critical mass of world-class cultural institutions in its downtown core — a strategy comparable to the cultural district initiatives undertaken by other American cities in the first decade of the twenty-first century.

Mario Botta was acutely aware of this urban ambition when designing the Bechtler Museum of Modern Art. As his son and project architect Tobia Botta explained in an interview with Architect magazine, “The idea was to build a public space, something personal and human scale, in contrast to the surrounding skyscrapers.

” This intention is visible in the building’s most surprising and successful spatial move: the carved-out entrance plaza at the building’s base, where a large portion of the ground floor appears to have been excavated from the building’s east side, creating a covered outdoor room that mediates between the street and the museum’s interior atrium. The Bechtler Museum of Modern Art does not simply stand on its plot; it creates a new piece of urban space, a sheltered threshold between the city and the art world within.

Botta himself described his design intent for the Bechtler Museum of Modern Art with characteristic clarity: he aimed to design not only a building that stood apart as a unique contribution to the urban landscape but also one that served as a strong aesthetic partner among the group of individual architectural statements forming the Levine Center. The building succeeds on both counts: it is immediately recognizable as a Botta building, yet it holds its position in the ensemble with discipline and composure, neither overwhelming its neighbors nor receding into the background.

Exterior Architecture: The Terra Cotta Cube and the Swelling Column

From the street, the Bechtler Museum of Modern Art reads as a monolith — a square, terra cotta-tiled box of four stories, punctuated by minimal window openings, that presents a face of material solidity and geometric precision to Tryon Street. John Boyer, the museum’s president and CEO at the time of opening, described this first impression with the phrase that has since become the building’s most widely quoted characterization: a “cube of clay filled with light.” That phrase captures exactly the productive contradiction between the building’s exterior severity and its interior luminosity.

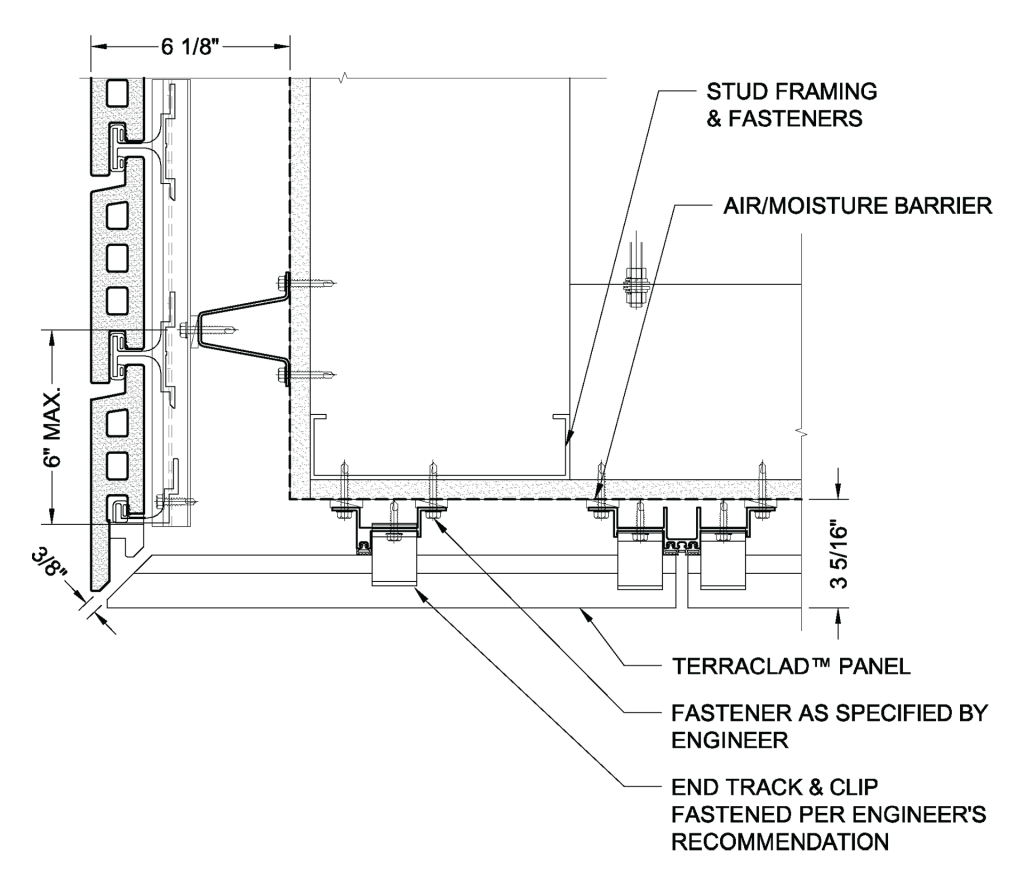

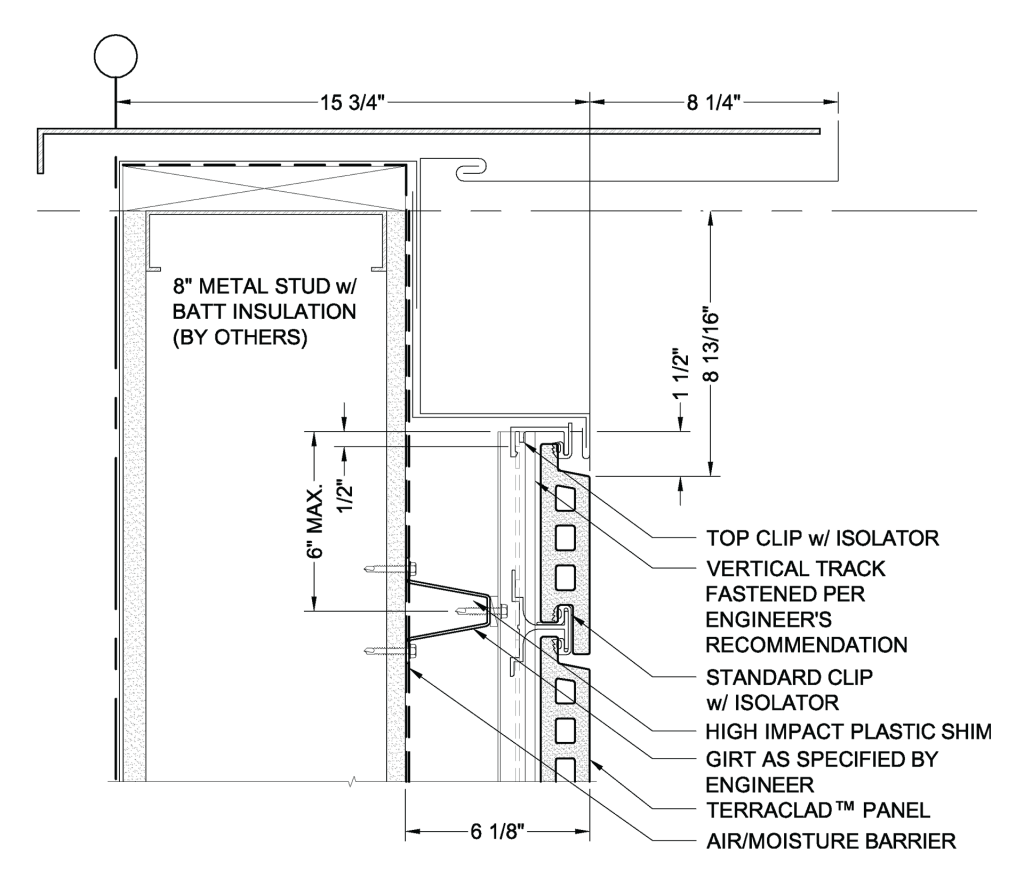

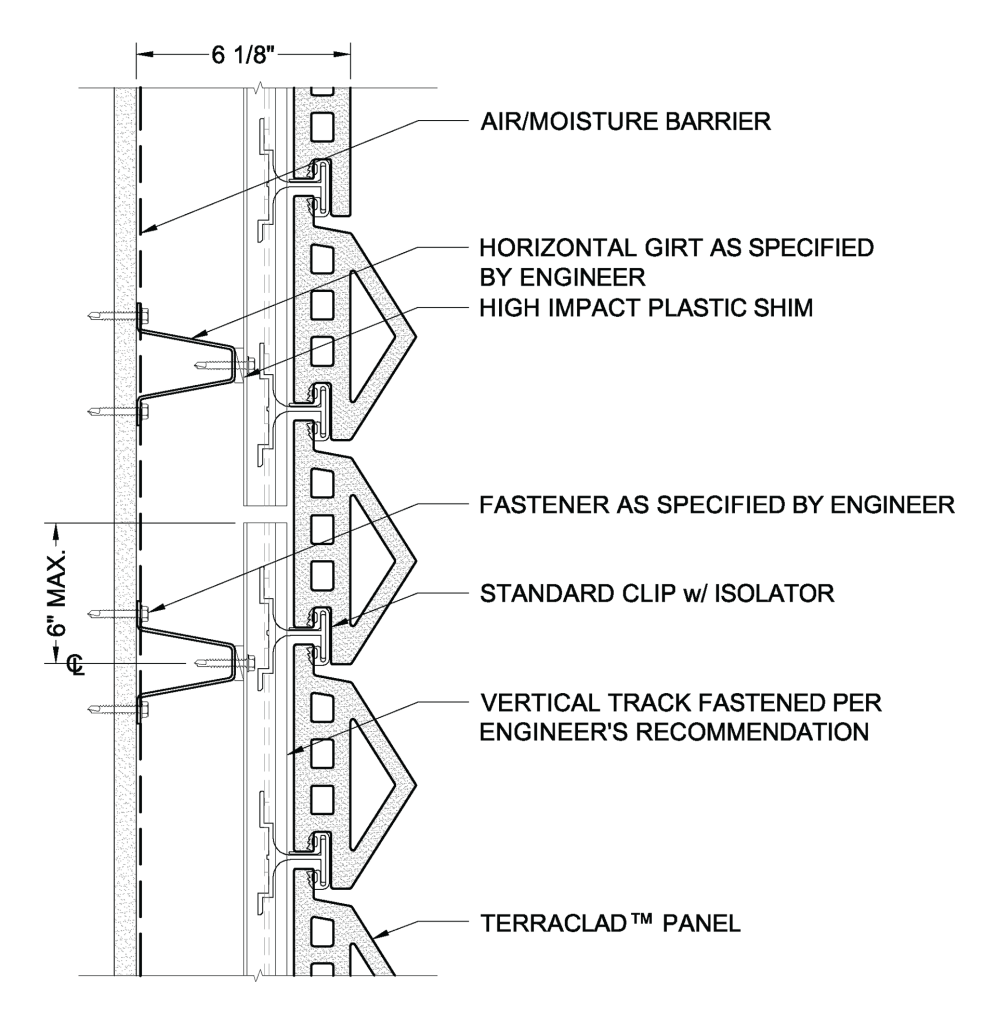

The terra cotta cladding of the Bechtler Museum of Modern Art was manufactured by Boston Valley Terra Cotta, a specialist manufacturer based in New York that worked directly with Botta to develop a custom through-body clay color and several custom panel profiles specific to this project. Boston Valley supplied approximately 30,000 square feet of terra cotta panels for the building’s main surfaces, 6,000 square feet of custom-sized pavers, and 5,000 square feet of soffit units — a material scope that reflects both the ambition of the surface treatment and the precision required to execute it at the scale of a four-story museum building.

The dominant feature of the Bechtler Museum of Modern Art’s exterior is the fourth-floor gallery, which cantilevers dramatically over the entrance plaza, with approximately half of its 10,762-square-foot floor plate — nearly 5,400 square feet — projecting beyond the building’s structural core. This cantilevered gallery is supported by the building’s most celebrated structural element: a single swelling column rising 47 feet from the plaza below.

The column is extraordinary both visually and structurally. At its center, its diameter reaches 8 feet — double the diameter at its endpoints — creating a bulging, almost organic profile that has been compared to the entasis of classical Greek columns. Where classical entasis was a subtle optical correction, however, Botta’s column is a bold, frank expression of structural force: a column that appears to be physically compressed by the enormous weight above it, its center swelling under load.

The column’s structural capacity matches its visual drama. The concrete core, rated at 12,000 psi — two to two-and-a-half times the strength of a standard column — carries not only the gravity loads of the cantilevered gallery above but also potential wind uplift from below the overhang and lateral wind forces from the side. Its 14-foot-6-inch-square footing lies below the basement level, anchoring the Bechtler Museum of Modern Art’s most audacious formal gesture in bedrock invisibility.

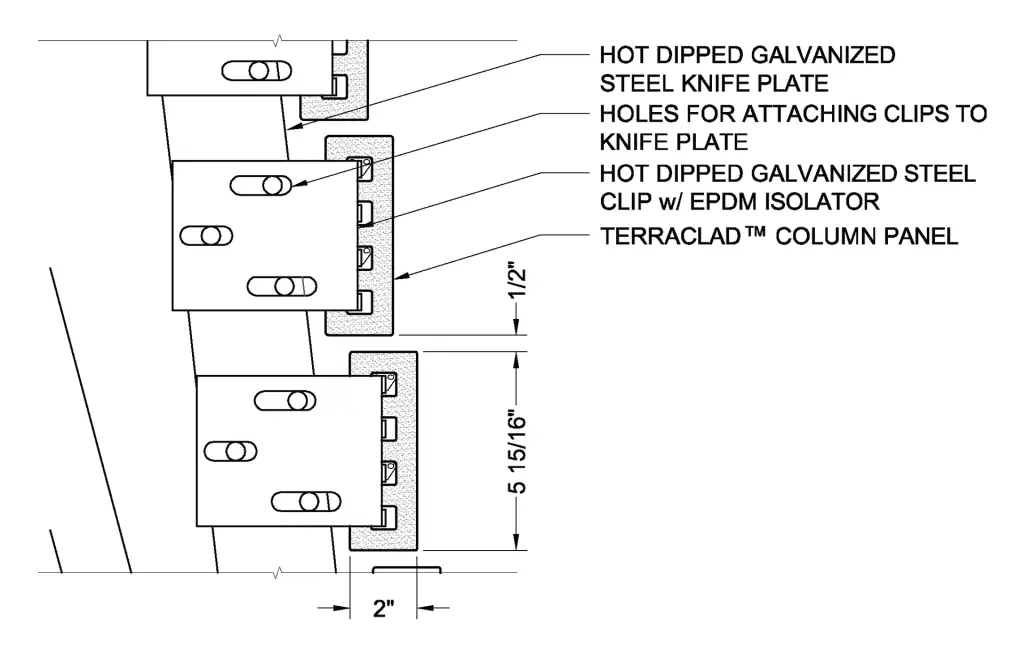

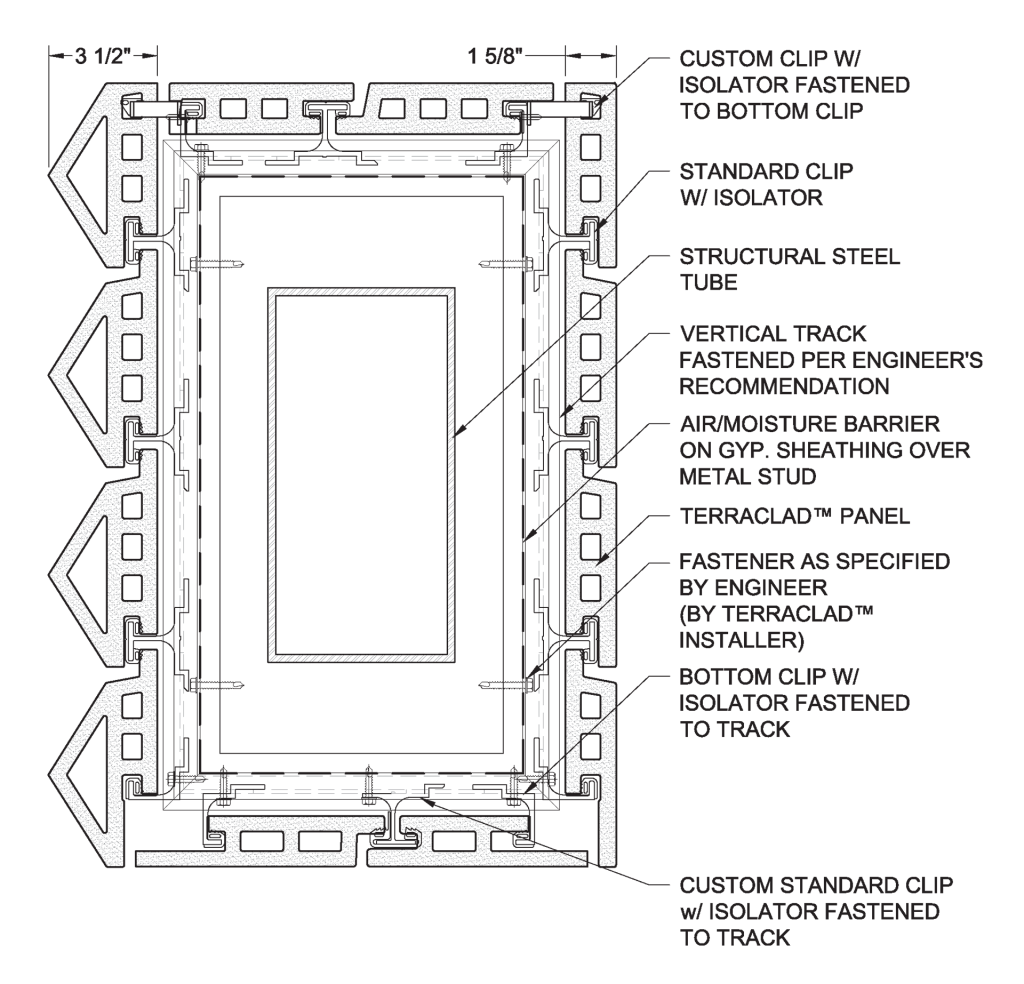

The terra cotta cladding of the column was mounted to a convex steel armature — a sophisticated engineered detail that allowed Boston Valley Terra Cotta to wrap a curved surface in a material that, in flat-panel form, covers the museum’s rectilinear exterior walls.

The absence of conventional signage or a prominent entry canopy on the Bechtler Museum of Modern Art’s exterior is a deliberate architectural choice. The carved-out plaza beneath the cantilevered gallery, with the swelling column at its center, performs both functions simultaneously: it marks the building’s entrance with an architectural gesture powerful enough to be legible from a considerable distance, while the covered plaza itself provides the sheltered public threshold that most museums achieve through conventional canopies or porticos.

Interior Spatial Experience: Light, Atrium, and the Gallery Sequence

The interior of the Bechtler Museum of Modern Art directly contradicts the monolithic severity of its exterior — a spatial strategy that Botta has deployed throughout his career and that is particularly effective at the Bechtler, where the transition from the closed, weighty terra cotta exterior to the luminous, open interior atrium produces a moment of genuine architectural surprise for every first-time visitor.

The central organizing element of the Bechtler Museum of Modern Art’s interior is the four-and-a-half-story glazed atrium that rises through the building’s core. This atrium — visible from the street through the glass wall that faces the entrance plaza — diffuses natural light throughout the building’s interior at every level, connecting the ground floor lobby, the gallery floors above, and the fourth-floor cantilevered gallery in a continuous visual sequence.

The atrium does not merely light the building; it gives the Bechtler Museum of Modern Art its spatial identity, transforming what could have been a series of isolated gallery rooms into a connected whole whose vertical dimension is always legible and always filled with changing natural light.

Supplementing the central atrium, the Bechtler Museum of Modern Art features a vaulted skylight system that delivers additional controlled natural daylight to the gallery spaces on the upper floors. The combination of the lateral atrium glazing and the overhead vaulted skylights creates an interior light environment of considerable sophistication — bright enough to make the artworks visible and engaging, controlled enough to protect them from harmful ultraviolet exposure and excessive glare.

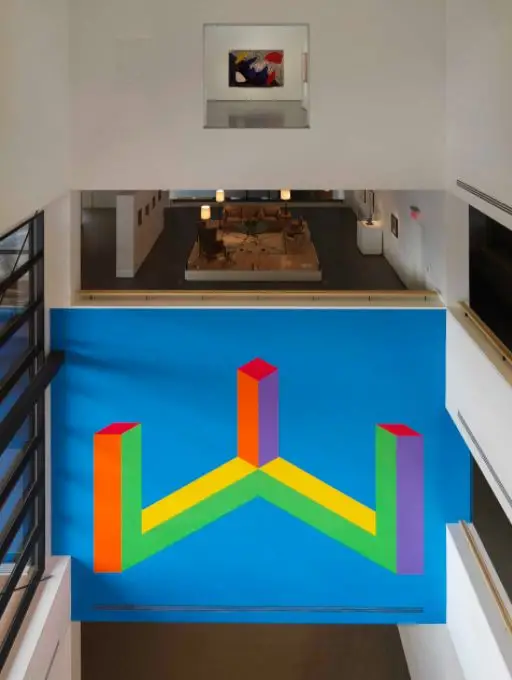

The entry to the Bechtler Museum of Modern Art is immediately distinguished by the presence of Sol LeWitt’s Wall Drawing 995 (2001), a large-scale geometric mural that spans the full height of the multi-story foyer. At 23 feet 5 inches tall and 27 feet 5 inches wide, the work is the first major artwork a visitor encounters upon entering, and its geometric intensity — bands of vivid color organized in LeWitt’s characteristic systematic logic — sets the visual register for the entire collection experience within the Bechtler Museum of Modern Art.

Interior materials at the Bechtler Museum of Modern Art are consistent with Botta’s characteristic palette: steel, glass, terra cotta, black granite, polished concrete, and wood. The rigorous simplicity of this palette ensures that the architecture and the art do not compete but instead reinforce one another — the building’s material austerity providing a foil against which the chromatic and formal complexity of the mid-century collection can register with full force.

Mario Botta’s Custom Furniture: Architecture Extends to the Object

A detail that distinguishes the Bechtler Museum of Modern Art from most architectural commissions is that Mario Botta extended his design involvement beyond the building itself to a selection of the museum’s furniture. The reception desk, the café bar, the gallery benches, and the hanging globe lights in the lobby were all designed by Botta specifically for the Bechtler Museum of Modern Art.

This integration of building and object design reflects a tradition in European modernism — associated particularly with architects from Botta’s Swiss-Italian cultural milieu, from Carlo Scarpa through to Luigi Caccia Dominioni — in which the designed environment is understood to extend from the architectural shell to the smallest furnishing element. At the Bechtler Museum of Modern Art, this integration is visible and tangible: the furniture reads as a natural extension of the building’s geometric language and material palette.

The Bechtler Collection: 1,400 Works of Mid-Century Modernism

The collection housed by the Bechtler Museum of Modern Art is, by any measure, extraordinary. More than 1,400 works represent the full breadth of mid-twentieth-century modernism — from the School of Paris in the years immediately following the Second World War through American and British abstraction, kinetic art, and postwar sculpture. The collection is particularly strong in works that reveal the working process of the artist: the Bechtlers consistently acquired drawings, studies, and preparatory works that illuminate the conceptual and technical methods behind finished paintings and sculptures.

Among the most significant works in the Bechtler Museum of Modern Art collection are pieces by Alberto Giacometti, Jean Tinguely, Niki de Saint Phalle, Pablo Picasso, Joan Miró, Andy Warhol, Le Corbusier, Fernand Léger, Henri Matisse, and Edgar Degas. The collection’s depth in British artists — including Ben Nicholson, who served as an artistic mentor to a teenage Andreas Bechtler during summers in Ascona, and Barbara Hepworth — reflects the Bechtler family’s personal connections across European art circles that extended from Zurich to London and beyond.

Outside the Bechtler Museum of Modern Art, the entrance plaza is permanently occupied by Niki de Saint Phalle’s Firebird (Le Grand Oiseau de Feu sur l’Arche, 1991) — a 17-foot-5-inch-tall, 1,433-pound mosaic sculpture that was acquired by Andreas Bechtler in 2006 and installed on the plaza in October 2009. The Firebird provides the Bechtler Museum of Modern Art with a vivid, joyful public identity at street level, its colourful mosaic surface visible from the adjacent streets and making the museum’s plaza an inviting gathering point for Charlotte residents even when the building itself is closed.

Bechtler Museum of Modern Art in Charlotte’s Cultural Landscape

The opening of the Bechtler Museum of Modern Art on 2 January 2010 marked a significant moment in Charlotte’s cultural development. The city — better known internationally for its banking industry than its arts scene — was demonstrating through the Levine Center for the Arts that cultural investment could be as sophisticated and architecturally ambitious as any comparable program in larger American cities. The Bechtler Museum of Modern Art was the building that made this argument most powerfully, bringing a world-class European architect, a collection of international depth, and a building of genuine architectural distinction to a southern American city that had never before hosted work of this caliber.

Just as the Guggenheim Museum Bilbao demonstrated in 1997 that a landmark cultural building could transform a city’s global perception, the Bechtler Museum of Modern Art positioned Charlotte as a destination for cultural tourism and art appreciation in a region where no comparable institution previously existed. Like other post-2000 museum landmarks — including the Danish National Maritime Museum — the Bechtler Museum of Modern Art demonstrates that rigorous architecture and serious cultural programming are mutually reinforcing rather than in competition.

Key Takeaways: Bechtler Museum of Modern Art

• The Bechtler Museum of Modern Art is a four-story museum designed by Mario Botta, opened 2 January 2010 at 420 South Tryon Street in Uptown Charlotte, North Carolina.
• It is the only museum in the southeastern United States dedicated exclusively to mid-twentieth-century modern art, and only the second building Botta has designed in the United States, after the San Francisco MOMA (1995).
• The Bechtler Museum of Modern Art houses more than 1,400 works donated by Swiss-born Charlotte resident Andreas Bechtler, including works by Giacometti, Miró, Warhol, Tinguely, Picasso, and Niki de Saint Phalle.
• The building’s dominant exterior feature is the cantilevered fourth-floor gallery (10,762 sq ft, approximately half overhanging) supported by a 47-foot swelling column rated at 12,000 psi with an 8-foot center diameter.
• Boston Valley Terra Cotta manufactured approximately 30,000 sq ft of custom terra cotta panels for the exterior — including cladding for the swelling column, which required a convex steel armature and custom engineering.
• The interior centers on a four-and-a-half-story glazed atrium that diffuses natural light throughout all gallery levels, complemented by a vaulted skylight system.
• Sol LeWitt’s Wall Drawing 995 (2001) — 23 ft 5 in × 27 ft 5 in — occupies the multi-story foyer and is on long-term loan from the LeWitt estate.
• Niki de Saint Phalle’s Firebird (1991) — 17 ft 5 in, 1,433 lbs — stands permanently on the entrance plaza, acquired by Bechtler in 2006 and installed in October 2009.
• Mario Botta personally designed custom furniture for the Bechtler Museum of Modern Art, including the reception desk, café bar, gallery benches, and lobby globe lights.
• Partner architect was Wagner Murray Architects PA; structural engineer was KingGuinn Associates; terra cotta by Boston Valley Terra Cotta.

Frequently Asked Questions About the Bechtler Museum of Modern Art

Who designed the Bechtler Museum of Modern Art?

The Bechtler Museum of Modern Art was designed by Swiss architect Mario Botta of Mario Botta Architetto, with Tobia Botta as project architect. Wagner Murray Architects PA served as the partner architect of record; KingGuinn Associates provided structural engineering.

Where is the Bechtler Museum of Modern Art located?

The Bechtler Museum of Modern Art is located at 420 South Tryon Street in Uptown Charlotte, North Carolina, within the Levine Center for the Arts cultural complex.

When did the Bechtler Museum of Modern Art open?

The Bechtler Museum of Modern Art opened to the public on 2 January 2010, with a ribbon-cutting ceremony attended by former Charlotte Mayor Anthony Foxx and Andreas Bechtler.

What is the collection of the Bechtler Museum of Modern Art?

The Bechtler Museum of Modern Art houses more than 1,400 works of mid-twentieth-century modern art, donated to the public trust by Andreas Bechtler. The collection includes works by Giacometti, Miró, Tinguely, Niki de Saint Phalle, Picasso, Warhol, Le Corbusier, Léger, Matisse, Degas, and many others.

What is the swelling column at the Bechtler Museum of Modern Art?

The 47-foot swelling column stands in the entrance plaza, supporting the cantilevered fourth-floor gallery above. It is rated at 12,000 psi — two to two-and-a-half times standard column strength — and reaches 8 feet in diameter at its center. It is clad in terra cotta mounted to a convex steel armature and its 14-foot-6-inch footing lies below the basement.

What is special about the terra cotta of the Bechtler Museum of Modern Art?

Boston Valley Terra Cotta developed a custom through-body clay color and several custom profile panels specifically for the Bechtler Museum of Modern Art, supplying approximately 30,000 square feet of panels, 6,000 square feet of pavers, and 5,000 square feet of soffit units.

What permanent artworks are outside the Bechtler Museum of Modern Art?

The entrance plaza permanently displays Niki de Saint Phalle’s Firebird (Le Grand Oiseau de Feu sur l’Arche, 1991) — a 17-foot-5-inch, 1,433-pound mosaic sculpture acquired by Andreas Bechtler in 2006 and installed on the plaza in October 2009.

Is the Bechtler Museum of Modern Art Mario Botta’s only US building?

No — the Bechtler Museum of Modern Art is Botta’s second US commission. His first was the San Francisco Museum of Modern Art (1995). He has confirmed these as the only two projects he has accepted in the United States.

What is the Sol LeWitt work at the Bechtler Museum of Modern Art?

Wall Drawing 995 (2001) by American artist Sol LeWitt spans the multi-story foyer of the Bechtler Museum of Modern Art, measuring 23 feet 5 inches tall and 27 feet 5 inches wide. Installed in October 2009, it is on long-term loan from the Estate of Sol LeWitt.

Conclusion

The Bechtler Museum of Modern Art stands as both a landmark of contemporary American museum architecture and an argument for what cultural investment can achieve in a city willing to think ambitiously about its built environment. Mario Botta’s terra cotta cube — with its swelling column, its cantilevered gallery, its luminous central atrium, and its rigorous interior material palette — brings to Charlotte the full weight of a European architectural tradition rooted in geometric precision, material authenticity, and the productive tension between mass and light.

For architects and students who have followed Botta’s work from his early Swiss residential projects through the San Francisco MOMA, the Bechtler Museum of Modern Art provides an instructive final chapter in his American story: a building that demonstrates, in a mid-sized southern city rather than a global cultural capital, that serious architecture and serious art are their own justification, and that both are powerful enough to transform the cultural perception of any place that commits to them fully.
